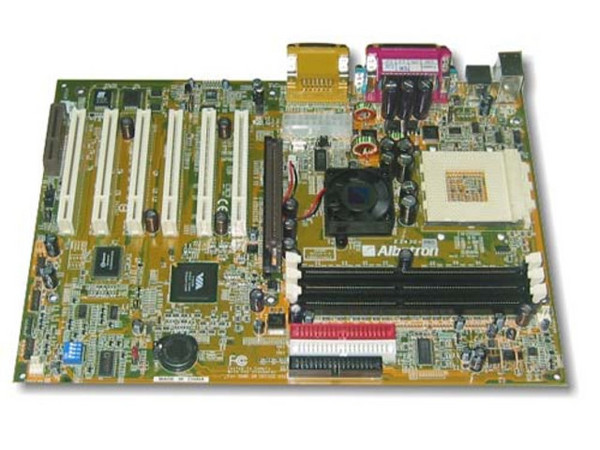

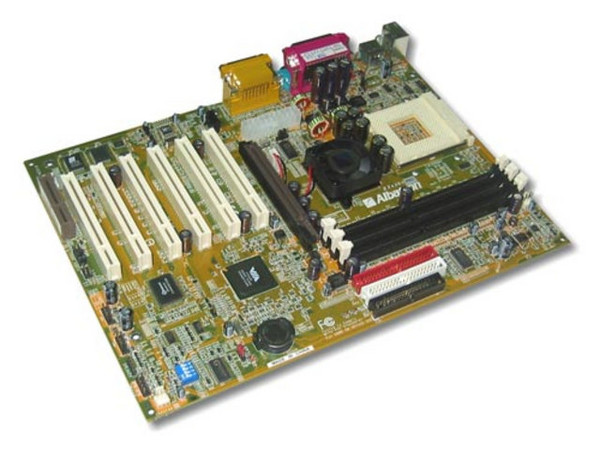

North
Bridge : VIA KT333
South Bridge : VIA VT8235
Audio Codec : Realtek ALC650
I/O Chip : Winbond W83697HF
Memoria
3
DDR sockets
DDR333/266/200 unbuffered ECC/none-ECC
DDR SDRAM up to 3GB
Expansion
Slots
1
x AGP 4X
6 x PCI slots (PCI 2.2 compliant)
IDE
Conectores
2
ATA133 channels,up to 4 ATA 133 IDE devices
Onboard
I/O Connectors
1
x Floppy Connector
2 x USB 2.0/1.1 header (4 ports by optional cable)
1 x CD_IN header
1 x S/PDIF in/out header (S/PDIF in/out cable optional)
1 x CPU fan header with fan rotation detection function
1 x System fan headers with fan rotation detection function
2 x 5pin system panel header (Intel spec)
1 x Front audio header (Intel spec)
1 x IrDA header
1 x Chassis intrusion detection header
1 x Wake on LAN
I/O
parte trasera
PS/2
keyboard/mouse, 2 x USB(2.0/1.1),2 x Com(serial), 1 x Parallel, 1x Game/Line-in/Line-out/MIC
Power
20-pin
ATX power connector
BIOS
2Mb
Flash EEPROM
Award BIOS with ACPI, DMI2.0, PnP, WfM2.0, Green Suspend to RAM (S3), Suspend
to Disk (S4) Wake on keyboard, Wake on LAN/RTC Timer
Hardware
Monitor
2
FAN sensors, CPU/System voltages and temperature monitoring
