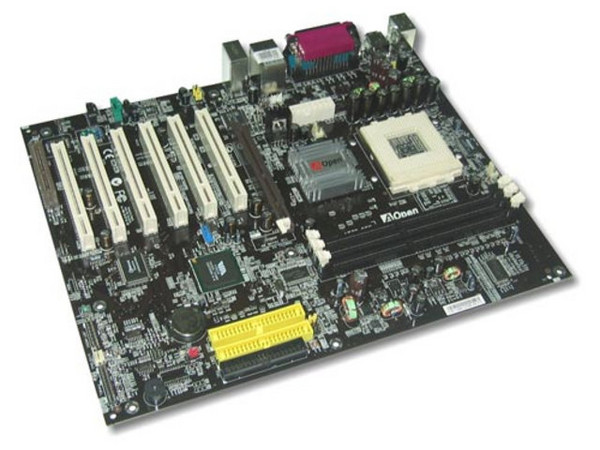

Tarjeta Madre AOpen AK77-8XN, ChipSet VIA KT400
Soporta: Athlon XP/Barton/Duron con BUS de 333Mhz
Integrado: Audio AC 97, LAN 10/100Mbps
Diseño: ATX Completo, 1x AGP, 6x PCI, 1x CNR
Soporta hasta Athlon XP 3000+ (2.167GHz)/Athlon (1.4GHz) /Duron (950MHz) CPU
Socket A
333MHz
Chipset
VIA KT400
VIA 8235
Super I/O
Winbond
Clock Gen.
Cypress
Max Overclocking : 496Mhz (EV6)
Main Memory
Support DDR400 [PC3200]
DDR DIMM x 3
DIMM Type : 8/16/32/64/128/256/512MB & 1GB
Max Memory : 3GB
Graphics
8X AGP slot
IDE
Integrated ATA133 Controller
Max Disk : 144,000,000GB [by 48 bits LBA Spec.]
LAN
Realtek 10/100Mbps PCI LAN Chip
Integrated Realtek PHY
Sound
Realtek AC'97 CODEC on-board
5.1 Channel
USB
USB2.0 x 6
Slots
AGP x 1
PCI x 6
CNR x 1
Storage & Back Panel I/O
Floppy Drive ºConnector x 1
IDE Channel : ATA133 x 2
PS/2 Keyboard x 1
PS/2 Mouse x 1
USB Port x 4
LAN Port x 1
COM Port x 2
Printer Port x 1
Speaker_Out x 1
Line_In x 1
MIC_In x 1
On Board Connector
Front Panel x 1
Front Audio x 1
CPU FAN x 1
System FAN x 1
Chassis FAN x 1
Case Open Connector x 1
AUX_IN x 1
CD_IN x 1
Wake_on_LAN x 1
Wake_on_Modem x 1
IrDA x 1
S/PDIF x 1
Dr LED x 1
Game Connector x 1
USB Port x 2

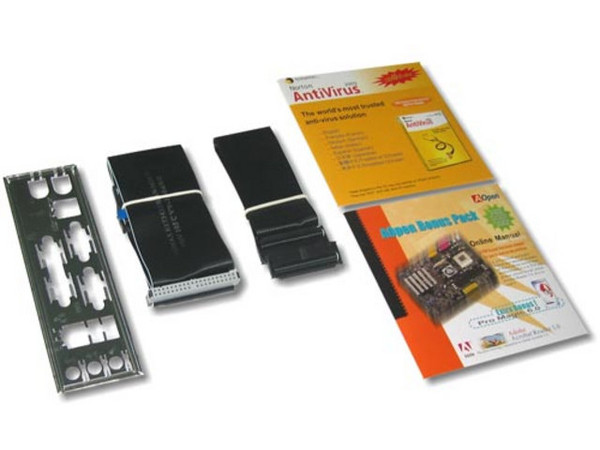

Easy Installation Guide x 1
EzRestore Guide x 1
Bonus Pack CD disc x 1
Norton Anti-Virus CD disc x 1
Floppy Disk cable x 1
80-wire IDE cable x 1
Back Panel I/O Shield x 1
Tarjeta Madre AOpen AK77-8XN, ChipSet VIA KT400
Soporta: Athlon XP/Barton/Duron con BUS de 333Mhz
Integrado: Audio AC 97, LAN 10/100Mbps
Diseño: ATX Completo, 1x AGP, 6x PCI, 1x CNR
