Ethernet
- RJ45 Twisted-Pair (XBaseT), Floppy - 34 pin Header, IDE - ATA/EIDE/ATAPI
40 pin Header, Keyboard - 6 pin mini-DIN (PS/2), Mouse - 6 pin mini-DIN
(PS/2), Parallel - ECP/EEP, SCSI - 68 pin HD D-shell (Wide SCSI), USB -
Universal Serial Bus "A", Video - 15 pin High-Density D-shell (VGA)
Estilo
de Panel de Sistema:
Extended
ATX
Processor
Socket:
Intel®
PGA603
Tipo
de Controlador:
IDE
(Ultra ATA 100) Controller
Video
Bus:
AGP
8X
Memoria
Máxima del Sistema:
8
GB
Tecnología
de Memoria:
DDR-SDRAM
(DDRRAM)
Velocidad
de Bus:
533
MHz
PCI
Slots:
5
Puertos
AGP:
1
Número
Máximo de Procesadores:
2
Processor
Class:
Intel
Xeon
System
Chipset:
Intel
E7505 Chipset
Descripción
Intel®

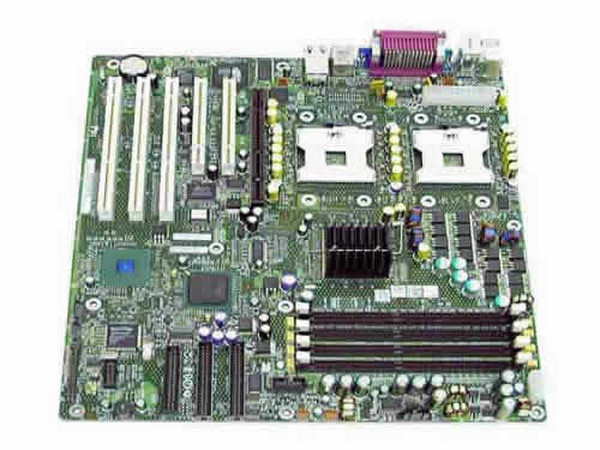

Server Board SE7505VB2 Deliver the performance, quality, and reliability
that are vital for both server and workstation applications using the Intel®
Server Board SE7505VB2. With dual Intel® Xeon™ processors, a 533MHz system
bus, and the Intel® E7505 chipset, the powerful and versatile Server Board
SE7505VB2 enables you to create a broad range of systems that deliver high-end
processing to solutions ranging from entry-level to enterprise-critical.
The Intel® Server Board SE7505VB2 extends the bandwidth and performance-enhancing
features of Intel® NetBurst™ microarchitecture and Intel® Hyper-Threading
Technology in a package ideally suited to the unpredictable computing demands
of growing businesses. In addition, dual integrated Intel® PRO Network Connections,
three independent PCI buses, integrated Serial ATA and support for 1.5V
AGP 8X Pro50 cards provides the scalable networking, flexible storage options,
and powerful graphics capabilities needed to meet a vast assortment of business
challenges. Powerful feature set delivers high-end value The Intel® Server
Board SE7505VB2 offers an exceptional set of capabilities to businesses
with diverse computing requirements. These include up to 8 GB of ECC DDR266
SDRAM, dual-interleaved for improved performance; five PCI slots with support
for PCI-X adapter cards; support for the Intel® RAID Controllers, with an
easy-to-use software interface, for powerful data protection; and an AGP
connector supporting 1.5V AGP 8X Pro50 cards.
