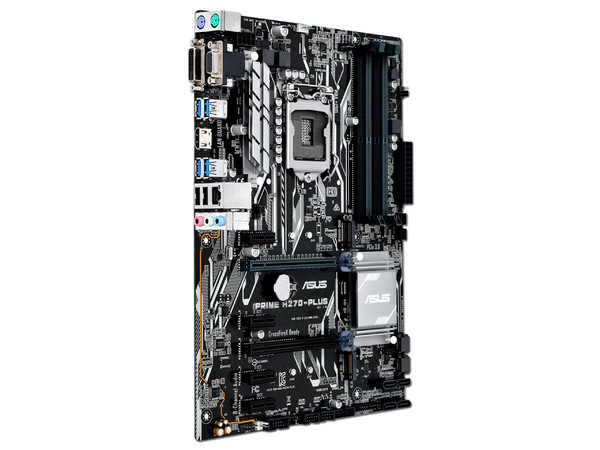

T. Madre ASUS PRIME H270-PLUS/CSM, Chipset Intel H270, Soporta: Core i7 / i5 / i3 / Pentium / Celeron de 7ma Gen., Socket 1151, Memoria: DDR4 2133 / 2400 MHz, 64GB Max, Integrado: Audio HD, Red, USB 3.0, SATA 3.0 y M.2, ATX, Ptos: 2xPCIE 3.0 x16.
Recomendados
| Especificaciones Generales | |
|---|---|
| Marca | ASUS |
| Modelo | PRIME H270-PLUS/CSM |
| - Procesador | |
|---|---|
| Para Procesadores | Intel |
| CPU Socket | Socket 1151 |
| Procesadores Compatibles | Intel Core i7 / Core i5 / Core i3 / Pentium / Celeron 7ma / 6ta Generación |
| - Chipset | |
|---|---|
| Tipo de Uso | General |
| Modelo | Intel H270 |
| - Memoria | |
|---|---|
| Tipo de Memoria Compatible | DDR4 |
| Ranuras de Memoria | 4 x DIMM |
| Memoria Compatible | 2400/2133 MHz |
| Máxima Memoria Soportada | 64 GB |
| Arquitectura de Memoria | Dual Channel |
| - Ranuras de Expansión | |
|---|---|
| PCI Express 3.0 x16 | 2 |
| PCI Express 3.0 x1 | 4 |
| - Dispositivos de Almacenamiento | |
|---|---|
| SATA 6Gb/s | 6 |
| SATA RAID | 0, 1, 5, 10 |
| M.2 | 1 |
| - Chipset de Audio Integrado | |
|---|---|
| Audio Integrado | Realtek ALC887 |
| Canales de Audio | 8 |
| - Red Integrada | |
|---|---|
| Chipset de Red | Realtek RTL8111H |
| Máxima Velocidad en Red | Gigabit 10/100/1000 Mbps |
| - Puertos E/S Traseros | |
|---|---|
| PS/2 | 2 |
| USB 1.1/2.0 | 2 |
| USB 3.0 | 4 |
| VGA (D-Sub) | 1 |
| DVI | 1 |
| HDMI | 1 |
| Conectores de Red (RJ45) | 1 |
| Puertos de Audio | 3 x 3.5mm Audio Jack |
| - Conector E/S Internos | |
|---|---|
| USB |
2 x USB 2.0 2 x USB 3.0 |
| ATX de 24-pin | 1 |
| ATX 12V 8-pin | 1 |
| SPDIF out | 1 |
| COM | 1 |
| Audio | 1 |
| M.2 | 1 |
| CPU Fan | 1 |
| Chassis Fan | 3 |
| TPM | 1 |
| - Especificaciones | |
|---|---|
| Factor de Forma | ATX |
| BIOS del Sistema | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
