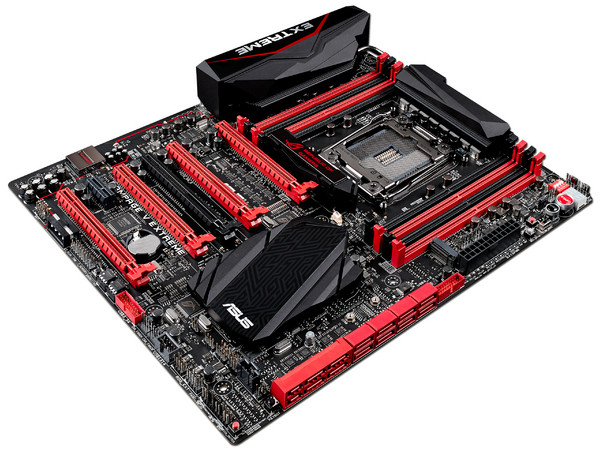

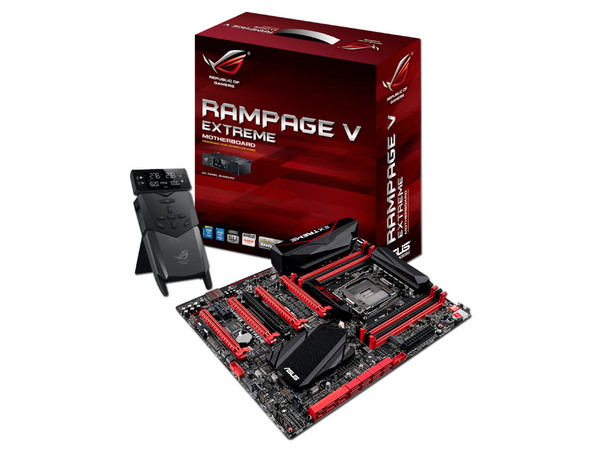

T. Madre ASUS RAMPAGE V EXTREME/U3.1, ChipSet Intel X99, Soporta: Intel Core i7 de Socket 2011-v3, Memoria: DDR4 3300(O.C.)/3000(O.C.)/2133 MHz, 64GB Max, SATA 3.0, USB 3.0, Integrado: Audio HD, Red Gigabit, ATX, Ptos: 4xPCIE 3.0 x16, 1xPCIEx1
Recomendados
| Especificaciones Generales | |
|---|---|
| Marca | Asus |
| Modelo | RAMPAGE V EXTREME/U3.1 |
| - Procesador | |
|---|---|
| Para Procesadores | Intel |
| CPU Socket | Socket 2011-v3 |
| Procesadores Compatibles |
Intel Core i7 y Xeon con socket LGA 2011-v3 Ver Lista de Procesadores Compatibles |
| - Chipset | |
|---|---|
| Modelo | Intel X99 |
| - Memoria | |
|---|---|
| Tipo de Memoria Compatible | DDR4 |
| Ranuras de Memoria | 8x DIMM |
| Memoria Compatible | DDR4 3300(O.C.) /3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz |
| Máxima Memoria Soportada | 64 GB |
| Arquitectura de Memoria | Quad Channel |
| - Ranuras de Expansión | |
|---|---|
| PCI Express 2.0 x16 | 1x (x4 mode) |
| PCI Express 2.0 x1 | 1 |
| PCI Express 3.0 x16 | 4 |
| - Dispositivos de Almacenamiento | |
|---|---|
| SATA 6Gb/s | 8 |
| M.2 | 1 |
| SATA Express | 1 |
| - Chipset de Audio Integrado | |
|---|---|
| Audio Integrado | ROG SupremeFX |
| Canales de Audio | 8 |
| - Red Integrada | |
|---|---|
| Chipset de Red | Intel I218V |
| Máxima Velocidad en Red | Gigabit Ethernet 10/100/1000Mbits |

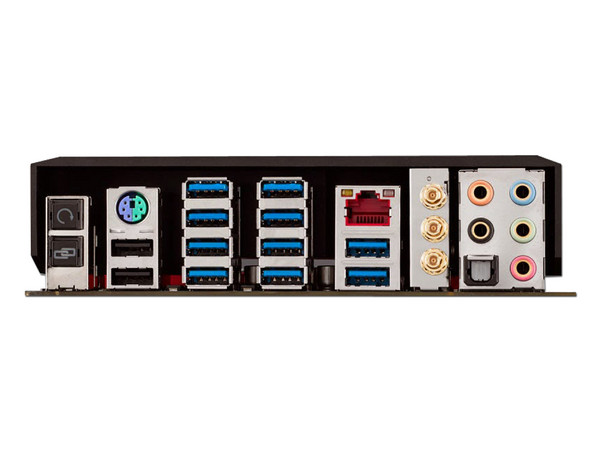

| - Puertos E/S Traseros | |
|---|---|
| PS/2 | 1 |
| USB 1.1/2.0 | 2 |
| USB 3.0 | 10 |
| S/PDIF Out | 1 |
| Botón Clear_CMOS | 1 |
| Conectores de Red (RJ45) | 1 |
| Puertos de Audio | 5 |
| Wireless LAN | 802.11 a/b/g/n/ac |
| Bluetooth | v4.0 |
| - Conector E/S Internos | |
|---|---|
| USB |
2 x USB 3.0 2 x USB 2.0 |
| ATX de 24-pin | 1 |
| ATX 12V 8-pin | 1 |
| ATX 12V 4-pin | 1 |
| SATA Express | 2 |
| Audio | 1 |
| M.2 | 1 |
| Thunderbolt | 1 |
| CPU Fan | 1 |
| Chassis Fan | 6 |
| TPM | 1 |
| Botón Power-on | 1 |
| - Especificaciones | |
|---|---|
| Factor de Forma | E-ATX |
| BIOS del Sistema | 2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information. |
| Características Físicas | |
|---|---|
| Dimensiones | 305 x 272mm |
