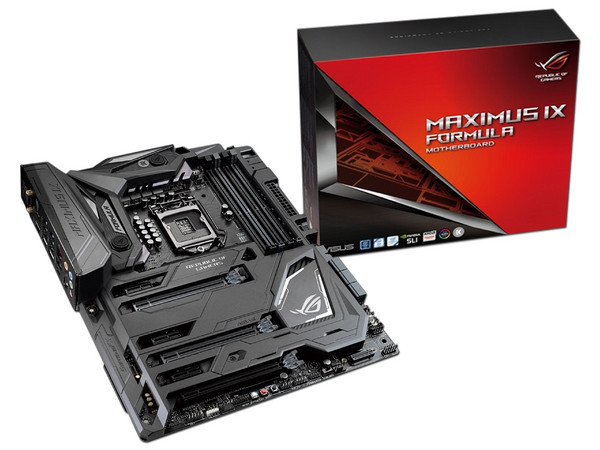

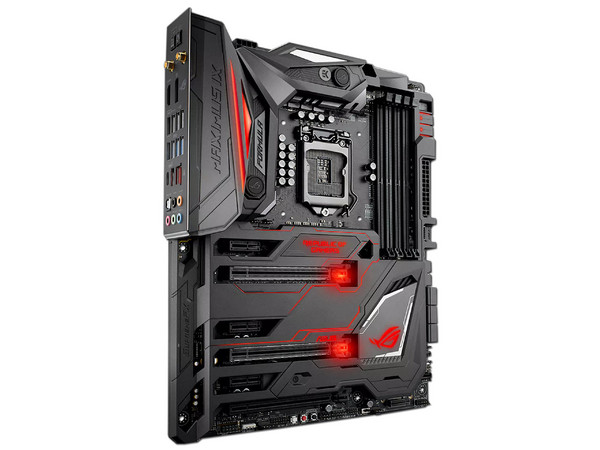

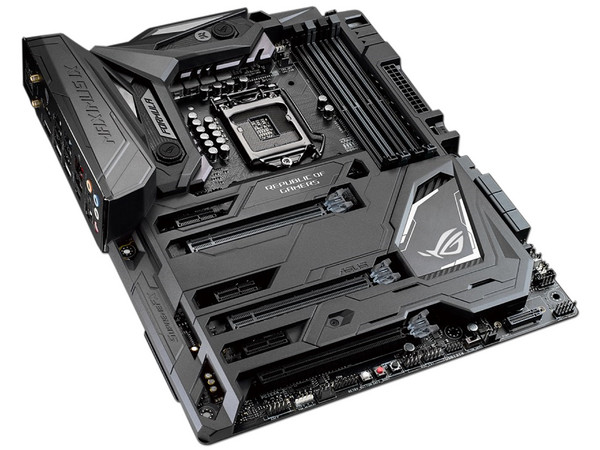

T. Madre ASUS ROG MAXIMUS IX FORMULA, Chipset Intel Z270, Soporta: Core i7 / i5 / i3 de 7ma Gen., Socket 1151, Memoria: DDR4 4000(O.C.)/3000(O.C.)/2133 MHz, 64GB Max, Integrado: Audio HD, Red, USB 3.1, SATA 3.0, M.2, ATX, Ptos: 3xPCIE 3.0 x16.
Recomendados
| Especificaciones Generales | |
|---|---|
| Marca | ASUS |
| Modelo | ROG MAXIMUS IX FORMULA |
| - Procesador | |
|---|---|
| Para Procesadores | Intel |
| CPU Socket | Socket 1151 |
| Procesadores Compatibles | Intel Core i7 / Core i5 / 7ma / 6ta Generación |
| - Chipset | |
|---|---|
| Tipo de Uso | Alto Rendimiento |
| Modelo | Intel Z270 |
| - Memoria | |
|---|---|
| Tipo de Memoria Compatible | DDR4 |
| Ranuras de Memoria | 4 x DIMM |
| Memoria Compatible | 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C. ) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz Non-ECC, Un-buffered. |
| Máxima Memoria Soportada | 64 GB |
| Arquitectura de Memoria | Dual Channel |
| - Ranuras de Expansión | |
|---|---|
| PCI Express 3.0 x16 | 3 |
| PCI Express 3.0 x1 | 3 |
| - Dispositivos de Almacenamiento | |
|---|---|
| SATA 6Gb/s | 6 |
| SATA RAID | 0, 1, 5, 10 |
| M.2 | 2 |
| - Chipset de Audio Integrado | |
|---|---|
| Audio Integrado | ROG SupremeFX S1220 |
| Canales de Audio | 8 |
| - Red Integrada | |
|---|---|
| Chipset de Red | Intel I219-V |
| Máxima Velocidad en Red | Gigabit 10/100/1000 Mbps |

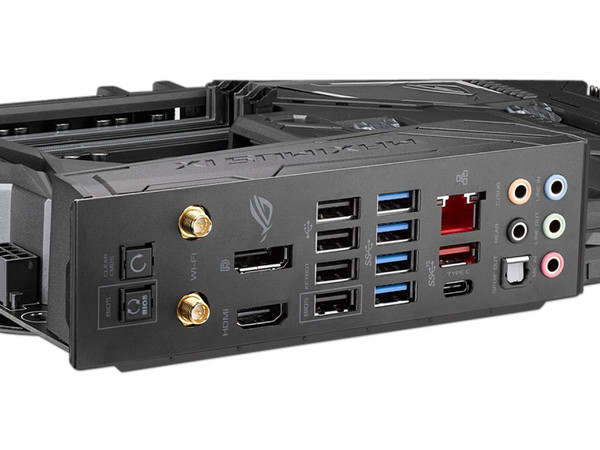

| - Puertos E/S Traseros | |
|---|---|
| USB 1.1/2.0 | 4 |
| USB 3.0 | 4 |
| USB 3.1 Tipo-C | 1 |
| USB 3.1 Tipo-A | 1 |
| S/PDIF Out | 1 |
| HDMI | 1 |
| Display port | 1 |
| Conectores de Red (RJ45) | 1 |
| Puertos de Audio | 5 x 3.5mm |
| Wireless LAN | 802.11 ac/b/g/n |
| - Conector E/S Internos | |
|---|---|
| USB |
1 x USB 3.0 1 x USB 2.0 |
| ATX de 24-pin | 1 |
| ATX 12V 8-pin | 1 |
| Audio | 1 |
| M.2 | 2 |
| CPU Fan | 1 |
| Chassis Fan | 4 |
| Botón Power-on | 1 |
| Botón Clear CMOS | 1 |
| - Especificaciones | |
|---|---|
| Factor de Forma | ATX |
